The iPanel is the natural evolution of one of our most popular designs. Elegant lines lend a modern feel to your rooftop, with all of the security, durability and aesthetic qualities you’ve come to associate with Metrotile Lightweight Roofing products.
The Shingle profile has been a staple of the Metrotile Lightweight Roofing product line, with the product’s hidden fix design proving the ideal solution to protect fixings from the weather and make Shingle as at home as vertical cladding as a pitched roof.
With iPanel, we have taken the hidden fix feature an applied it to a profile that is a similar, larger size to the rest of our line, offering the best of both worlds. Elegant, straight angles will add a modern flavour to any rooftop while the various colour options ensure the perfect match, whatever the building project.
Please contact us if you wish to discuss colour options for this profile.
The iPanel is backed by our Forty Year Weatherproof guarantee•• and offers unbeatable security and resistance to the elements, in addition to rapid installation times.
For further information about our new iPanel range, or a free no-obligation quotation for any Metrotile Lightweight Roofing products, fill in our Online Contact Form Alternatively, call us from 9am to 5pm Mon-Fri on 01249 658 514
*Non-standard colours require additional lead time – please contact us for more details
**Forty Year Weatherproof Guarantee is applicable when an installation is approved by a member of the Metrotile sales team, or when the roof is installed by a Metrotile Approved Contractor

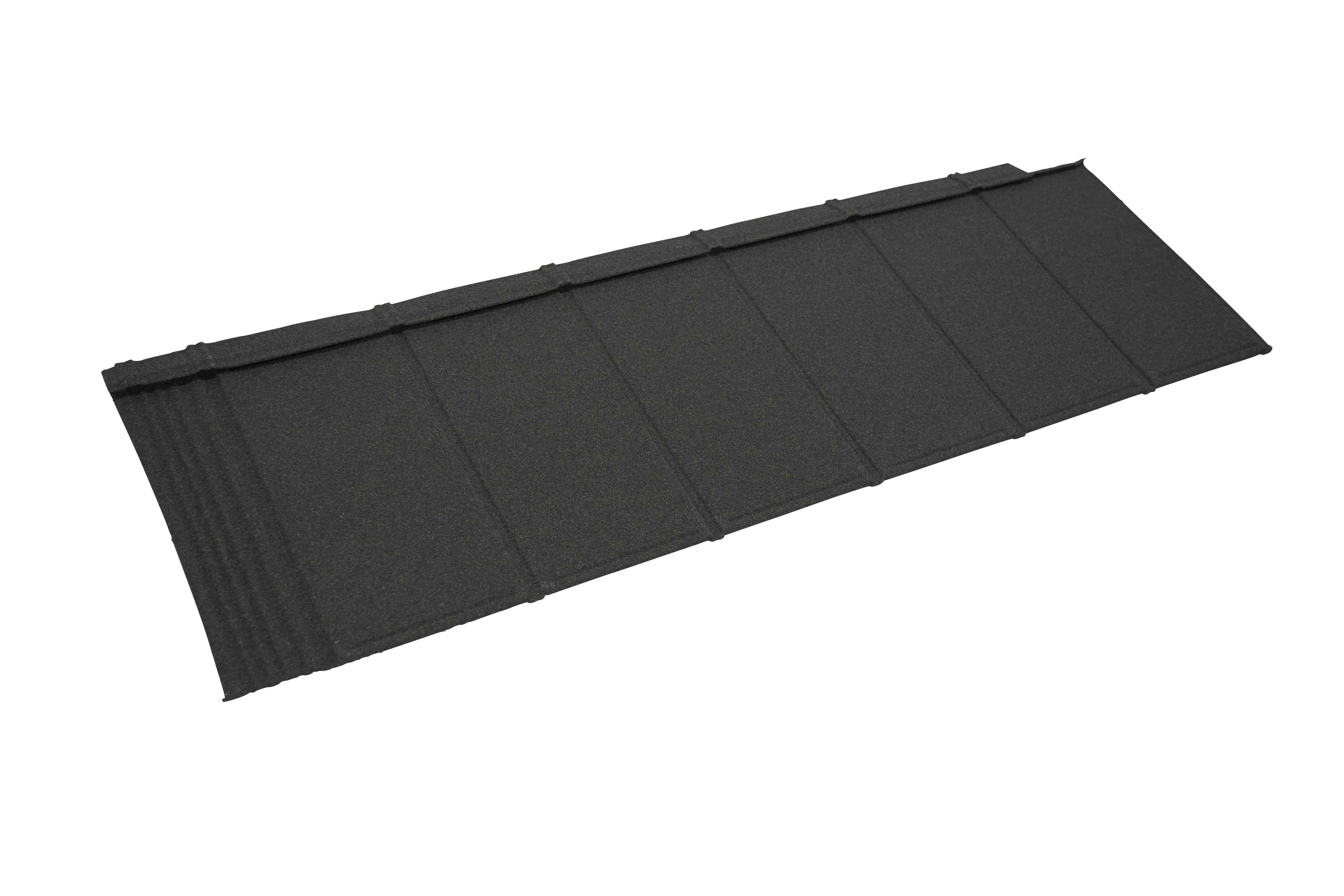

Metrotile iPanel Roof Tile in Charcoal

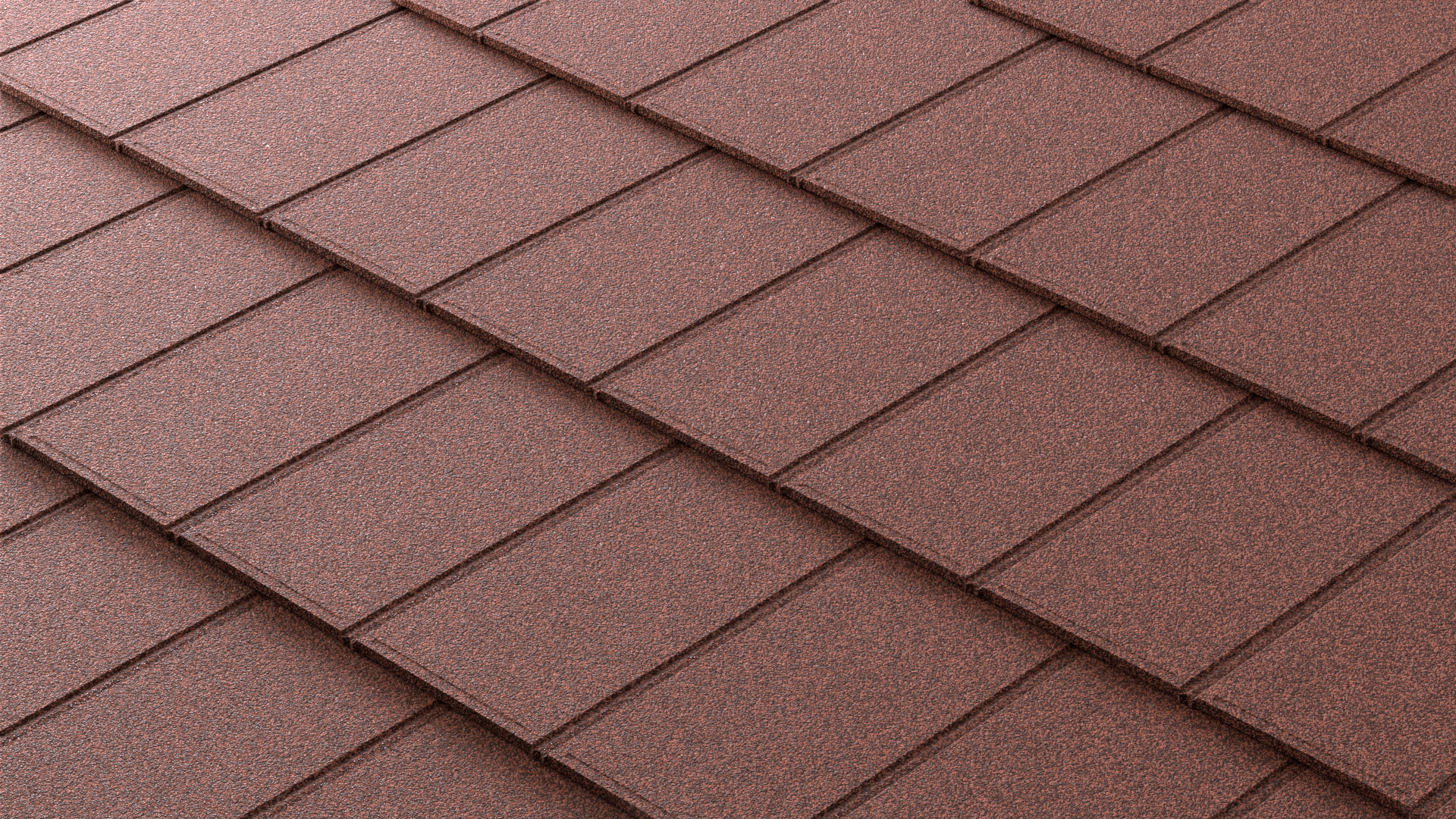

Metrotile iPanel Roof Tile in Scarlet

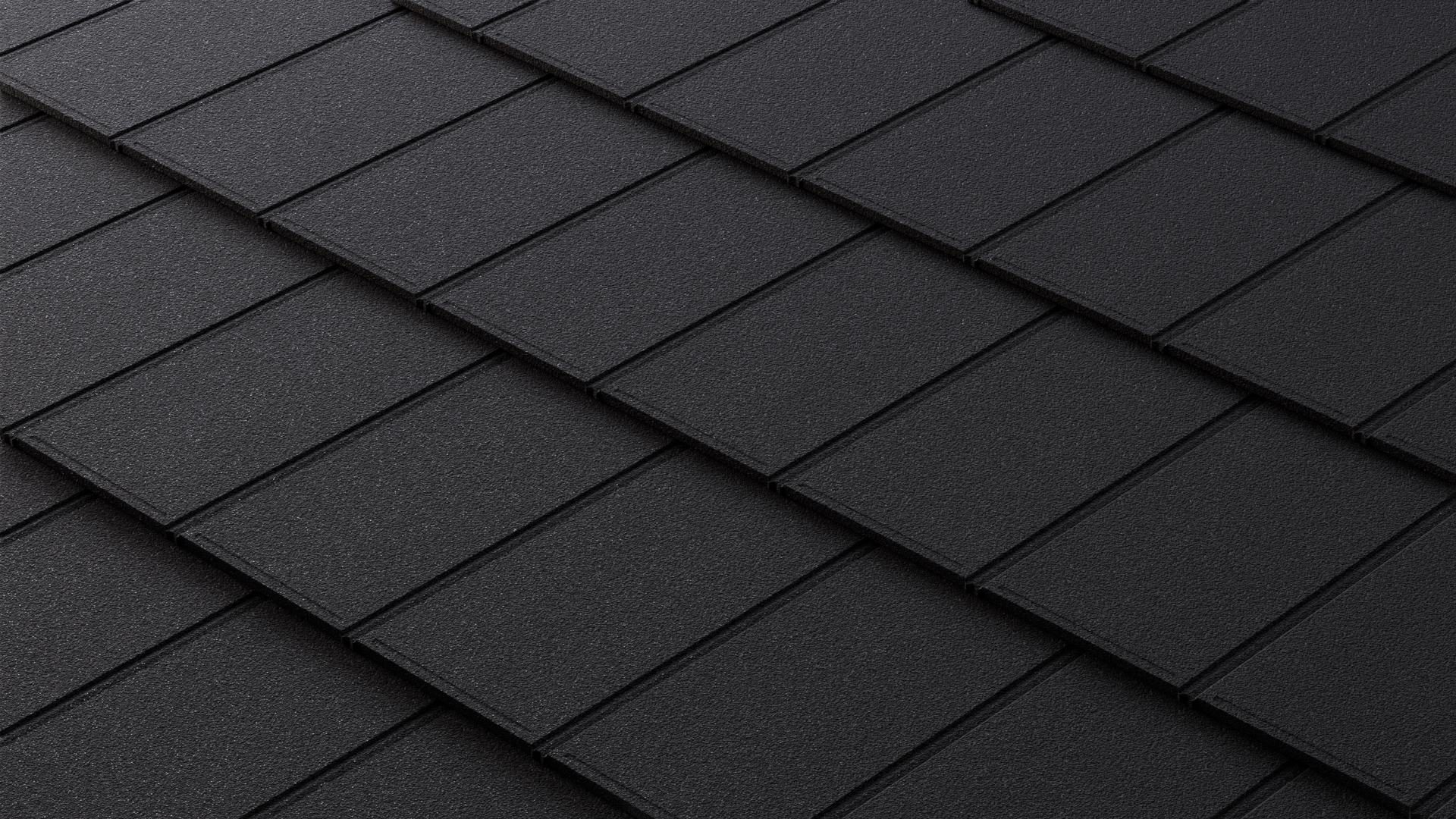

Metrotile iPanel Roof Tile in Coal Black

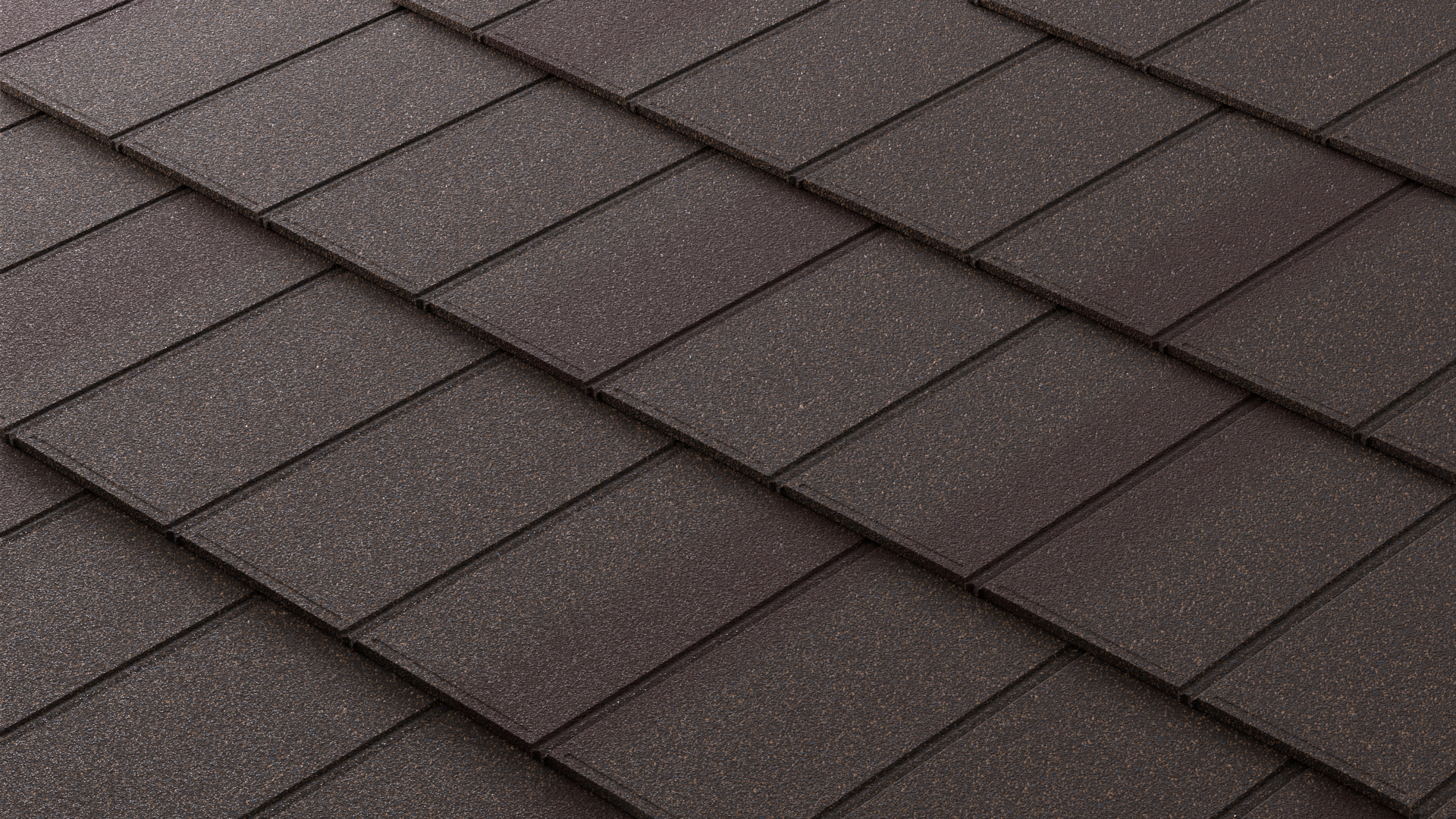

Metrotile iPanel Roof Tile in Burnt Umber
Fixings & Battens
| Tile Fixing: | Metrotile 25mm x 2.8mm Annular Ring Hot Dipped Galv. flat head nails |
| Fixings per tile: | 4 |
| Battens Required: | 6 l/m per m2 (allows for intermediate batten requirement) |
| Laying (recommended): | Broken bond |
| Rafter Centres | Batten Size |
| 450mm | 25 x 50mm |
| 600mm | 25 x 50mm |
| 900mm | 50 x 50mm |
| 1200mm | 50 x 50mm |
| 1500mm | 50 x 65mm |
Dimensions
| Pitch: | Minimum: 10° / Maximum: 90° |
| Dimensions: | 1340 x 430 mm |
| Cover Size: | 1230 x 375 mm |
| Gauge: | .410mm |
| Linear Cover Width: | 1230 mm |
| Coverage: | 2.17 per m² |
| Weight per m²: | 7.24kg |
| Weight per tile: | 3.29 kg |
Metrotile
Knowledge BaseTo watch our installation guides, and to read the full documentation for this product, please visit our Knowledge Base.
