Bond

In Stock profile

Metrotile Bond: the classic pantile design that put Metrotile on the map.

This range is available in a choice of standard colours to suit particular design and planning requirements, however with additional lead time we can provide you with any colour you require for your project. For more details about this you can contact us.

Bond is available in two thicknesses, .450mm and .900mm with the latter being suitable for areas where vandalism is a concern in addition to extra resistance to rooftop foot traffic. Metrotile .450 profiles are suitable for the majority of standard rooftop applications.

Each tile is the equivalent of eight conventional roof tiles and may be fixed from vertical right down to a 10° pitch; tiles are overlapped and then fixed, providing excellent strength and durability. For further information, or a free no-obligation quotation, fill in our Online Contact Form Alternatively, call us from 9am to 5pm Mon-Fri on 01249 658 514

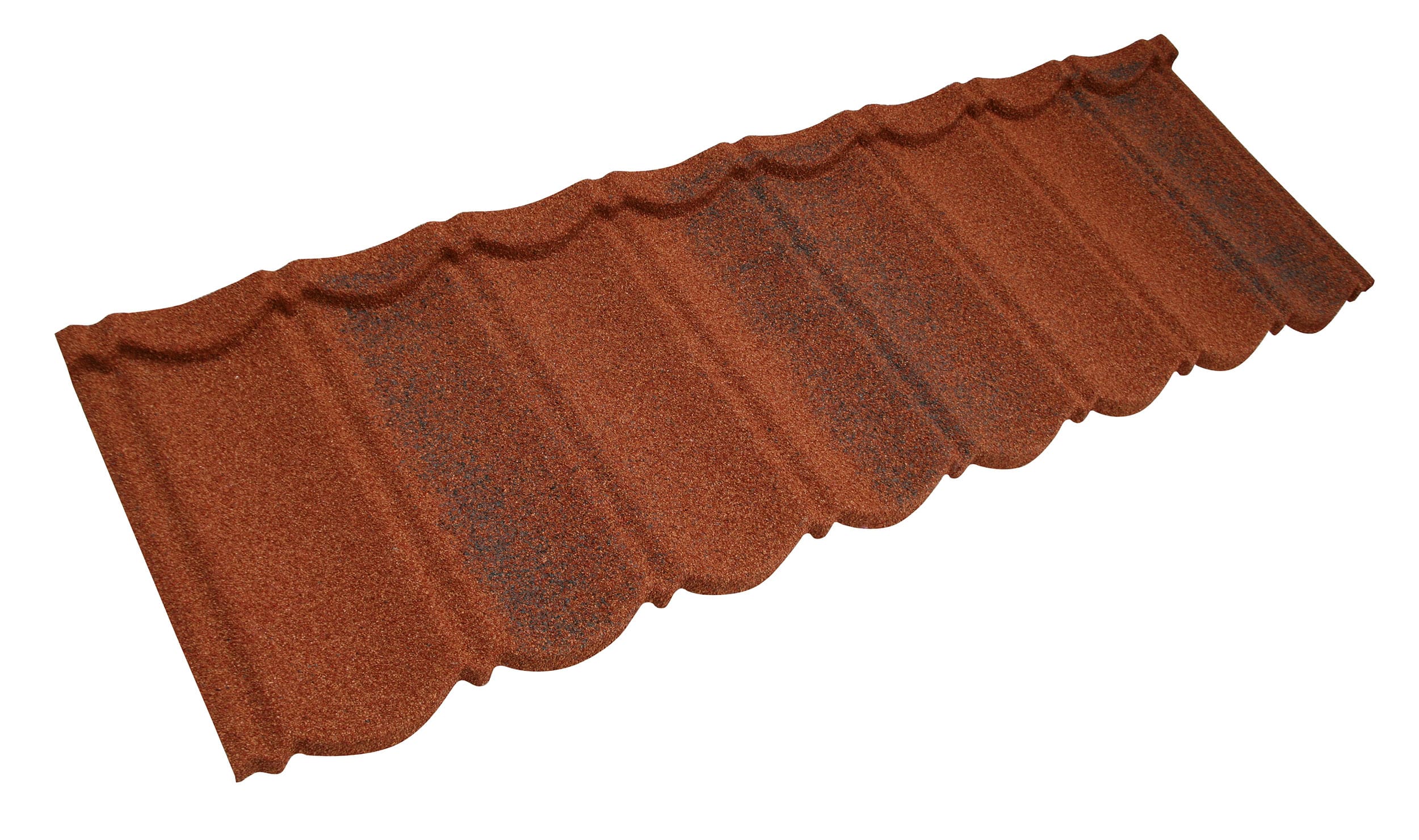

Metrotile Bond in Brindle

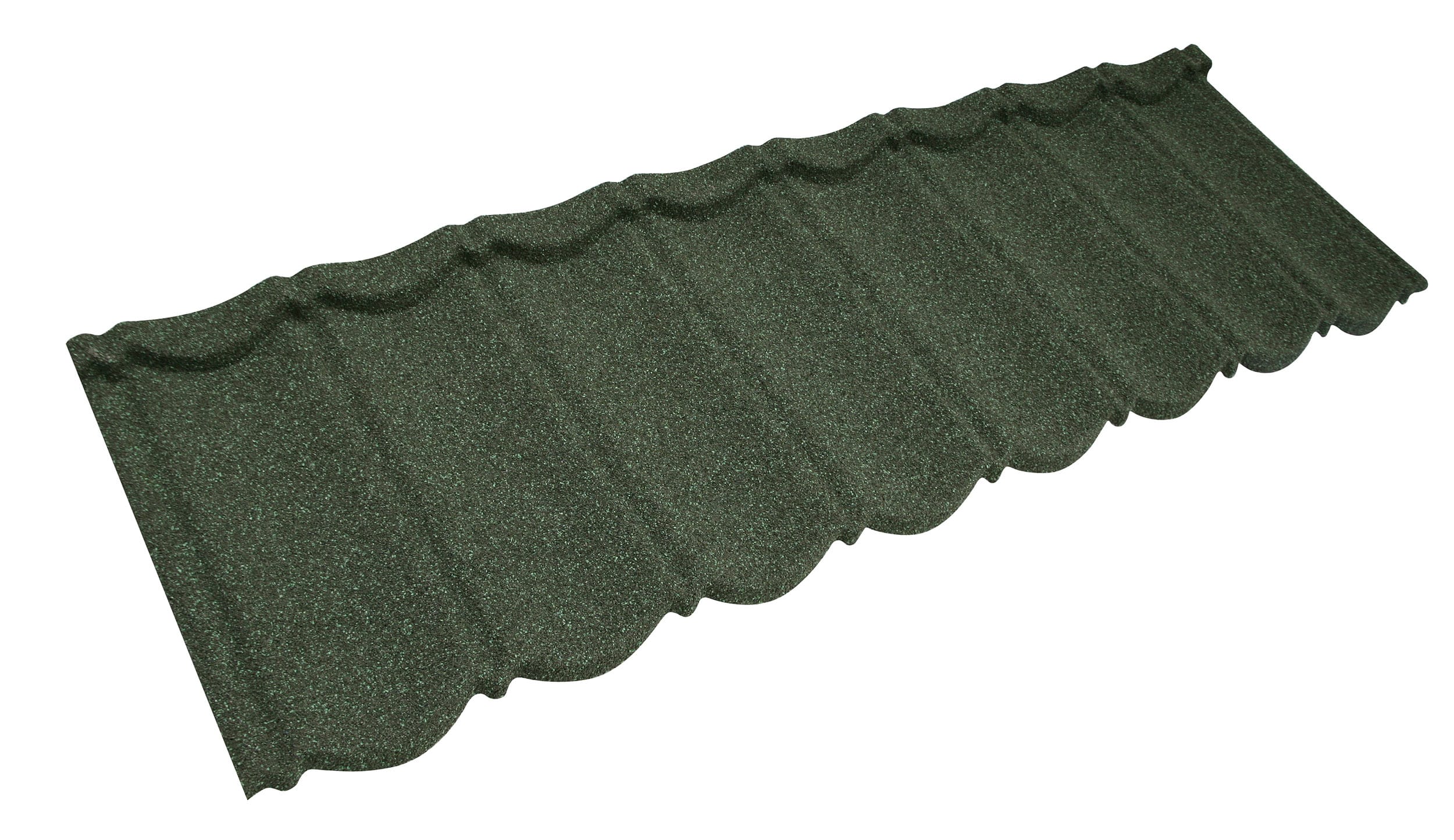

Metrotile Bond in Green

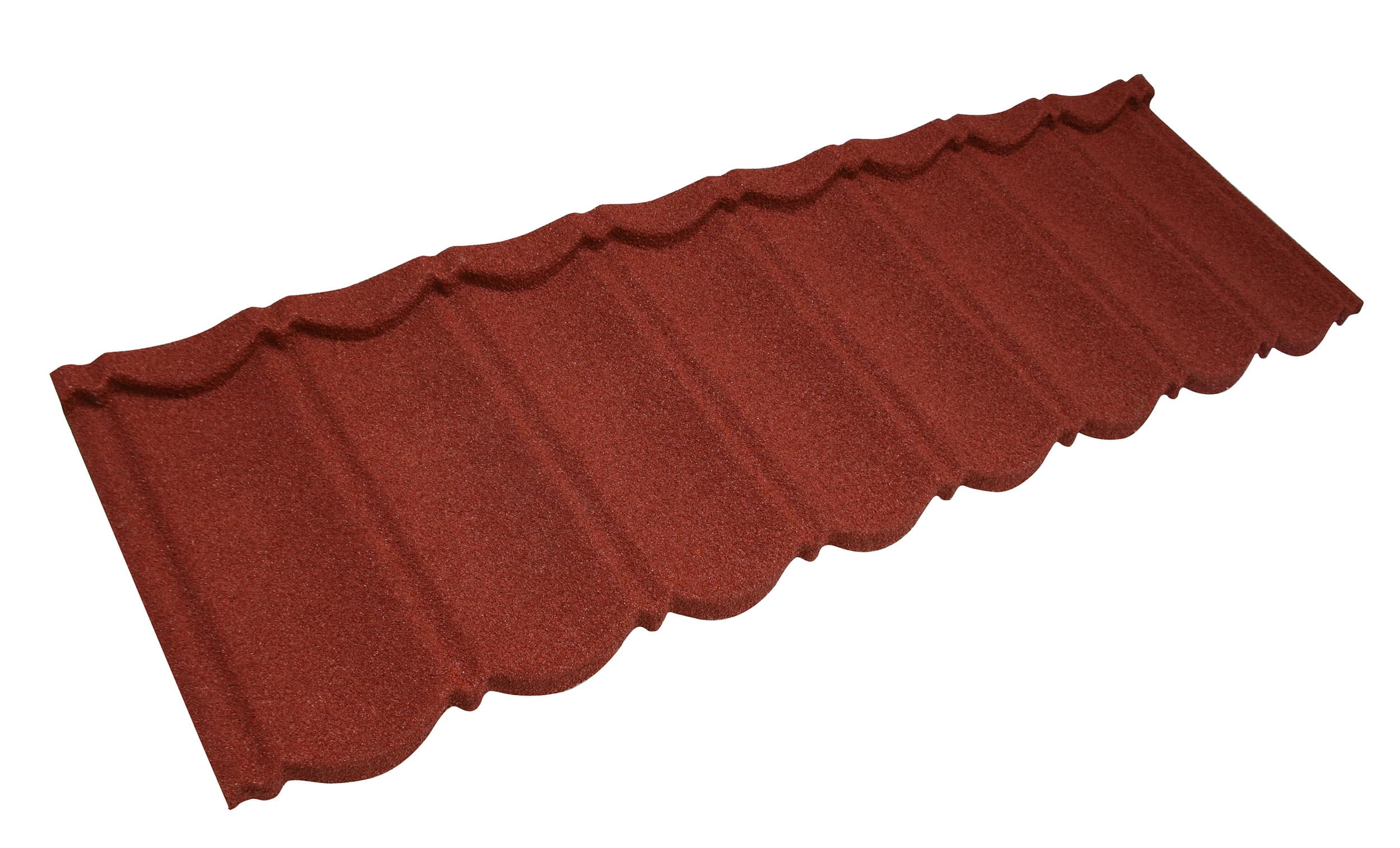

Metrotile Bond in Red

Metrotile Bond in Terracotta

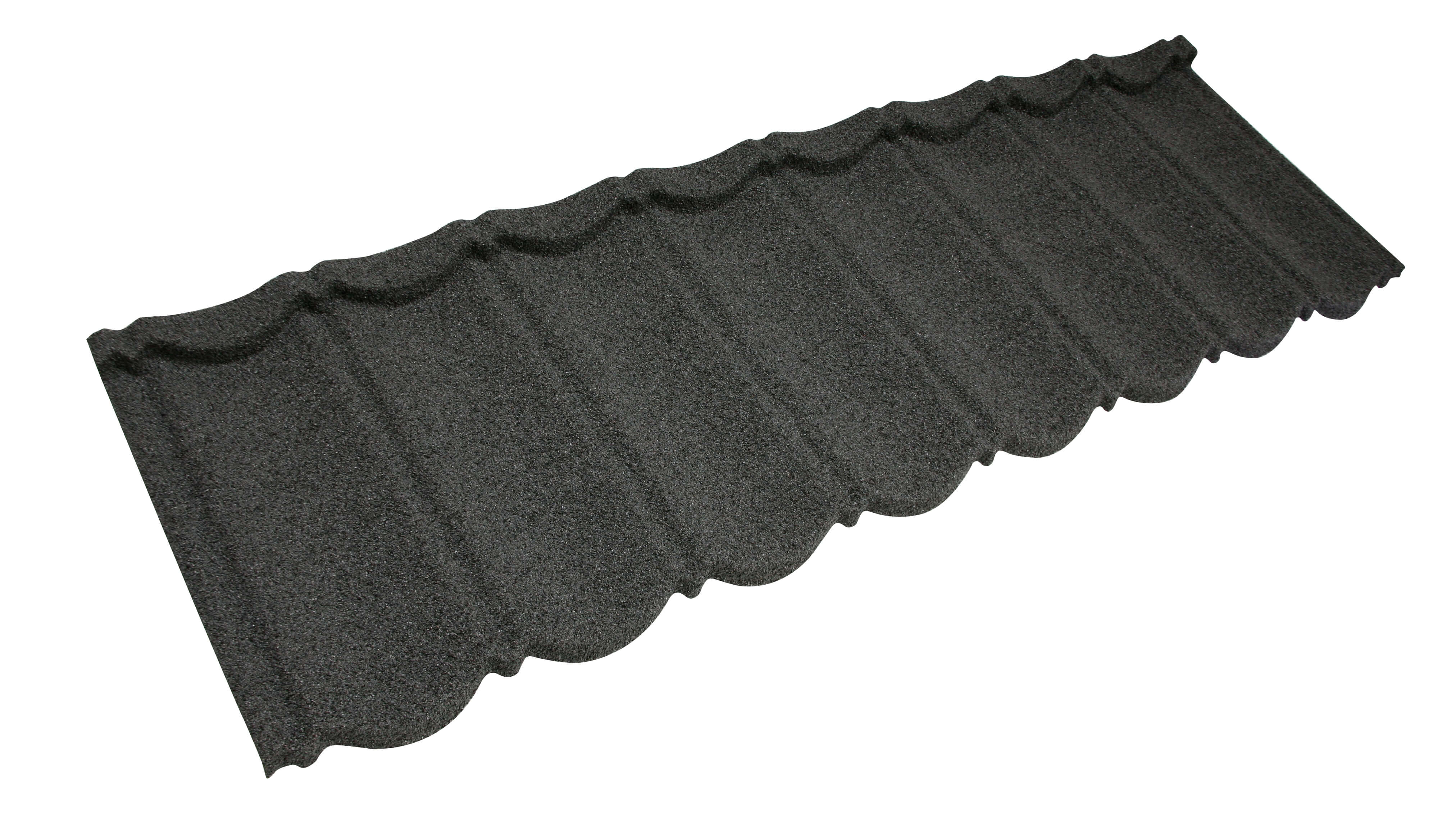

Metrotile Bond in Charcoal

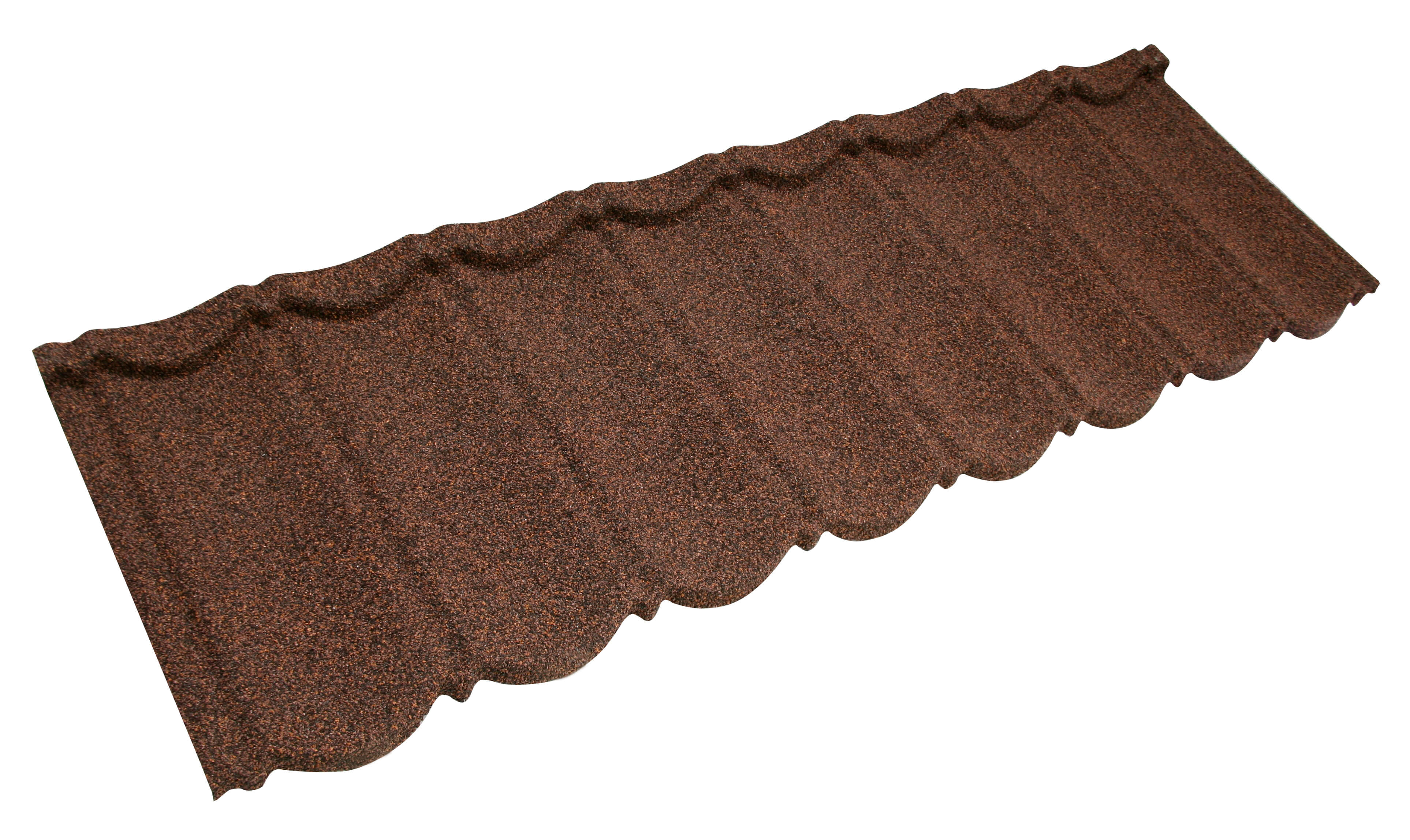

Metrotile Bond in Bronze

Fixings & Battens

Tile Fixing: 50 x 2.5mm Coated Nail. Hand nailing or power tool
Fixings per tile: 4
Battens Required: 5 linear metres per m² (plus wastage)
Laying (recommended): All roof shapes: broken bond
Rafter Centres Batten Size
450mm 25 x 50mm
600mm 25 x 50mm
900mm 50 x 50mm
1200mm 50 x 50mm
1500mm 50 x 65mm

Dimensions

Pitch: Minimum: 10° / Maximum: 90°
Dimensions: Overall Size: 1330mm x 370mm
Cover Size: 1257mm x 370mm
Gauge: .450mm .900mm
Linear Cover Width: 1257mm
Coverage: 0.46m² / 2.15 per m²
Weight per m²: 6.2Kg / 9.9Kg
Weight per tile: 2.8Kg / 4.6Kg

Metrotile

Knowledge Base

To watch our installation guides, and to read the full documentation for this product, please visit our Knowledge Base.

Case Study

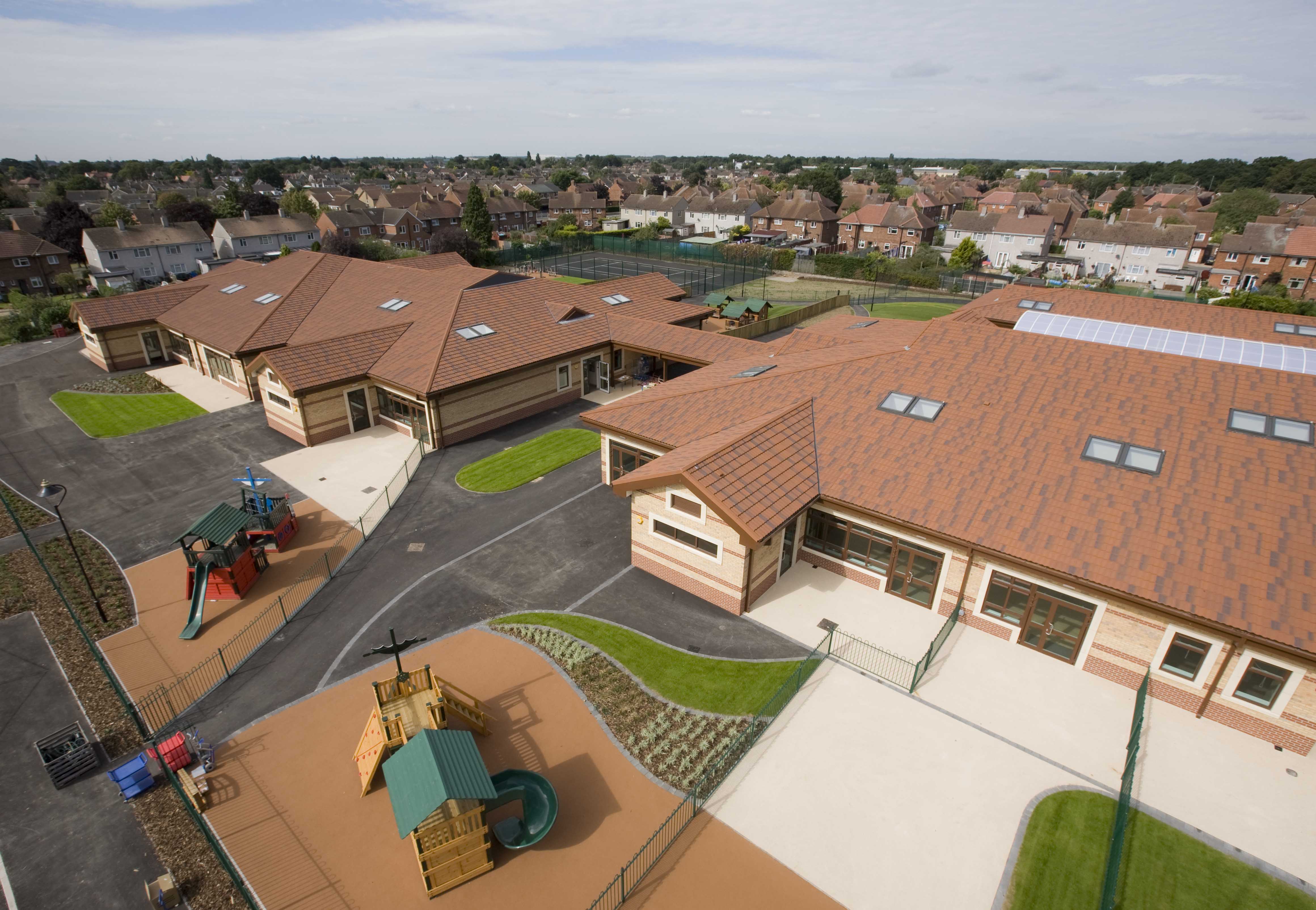

Priory Academies, Lincoln

Initially three separate educational sites, LSST, Witham and City of Lincoln College (incorporating The Ruskin Academy) merged together to create the Priory Federation of Academies. Overseen by Balfour Beatty, the combination of new build and refurbishment projects is one of the final government Building Schools for the Future programs and also the largest single project Metrotile UK has been involved with so far. Once completed, the various roofs of the Priory Academies will feature over 50,000 Metrotile tiles in total.

View case study

Case Study

New World Business Centre, Bristol

Metrotile is often utilised as a ‘problem solver’ material, chosen when a development needs a new roof that not only requires all of the security and aesthetics a roof should provide, but can also be installed rapidly - this is true of both new-build and refurbishment works.

View case study

Case Study

PGL Liddington, Swindon

PGL is an adventure holiday company that, in their own words, delivers “inspirational learning through adventure”.  They have campuses across the UK (in addition to France and Spain) where young people can partake in a vast variety of outdoor activities, including abseiling, canoeing and mountain biking to name but a few.

View case study

Case Study

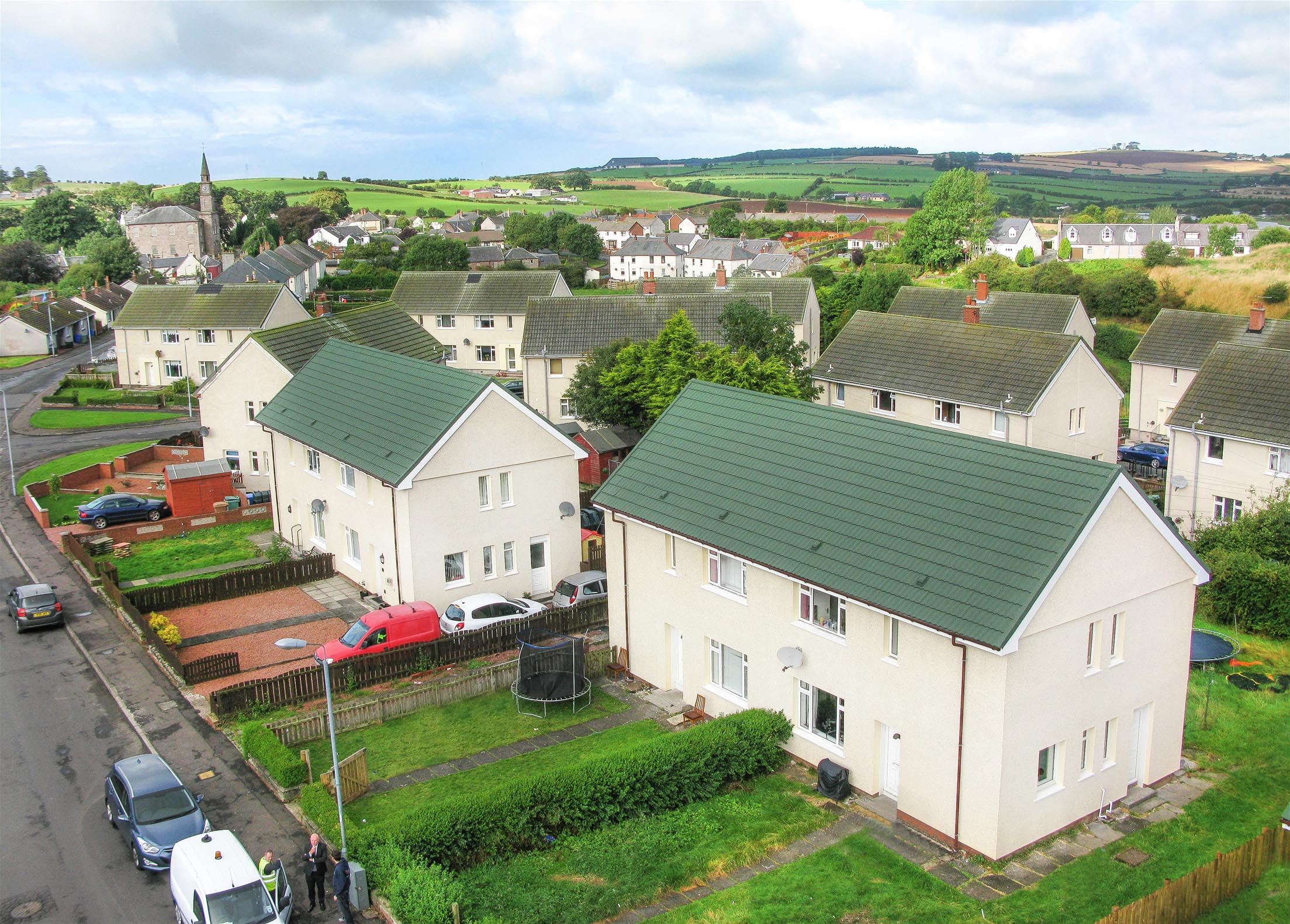

Local Authority Refurbishments, East Ayrshire

Metrotile continues to find favour with Local Authorities for the refurbishment of non-traditional housing stock, with East Ayrshire Council in Scotland the latest to specify The Future Proof Roof for such a project.

View case study

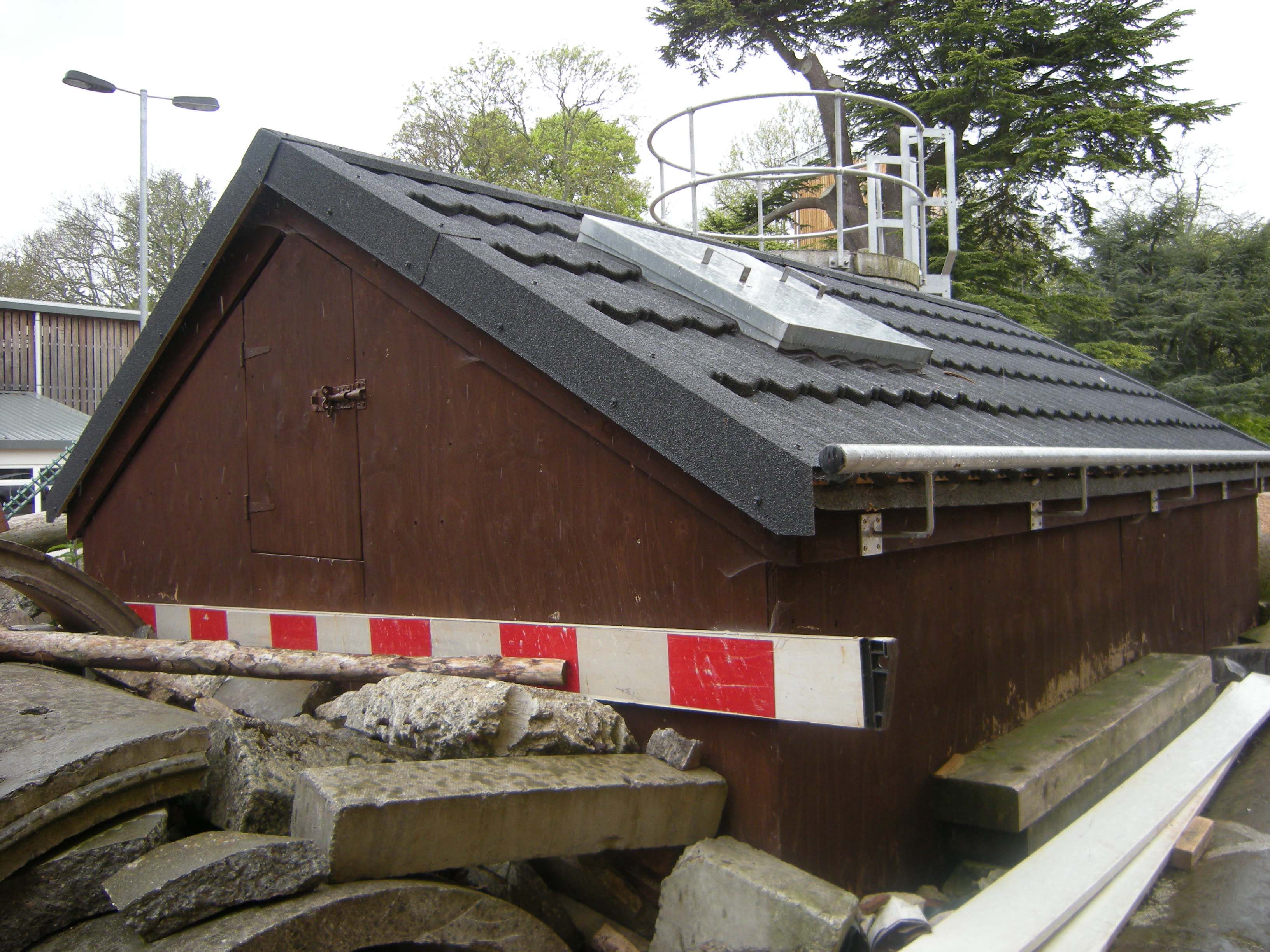

Case Study

Devon and Somerset Fire & Rescue Service

Metrotile Lightweight Steel Roofing has always been considered a versatile product, suitable for countless rooftop applications. Specifiers are often surprised by the many benefits Metrotile Lightweight Roofing has to offer, leading to Metrotile roofs appearing on a variety of interesting and occasionally niche projects.

View case study

The Full Metrotile Range

Tile Profiles

From our highly durable lightweight steel roofing tile profiles to underlay, accessories and fixings, you’ll find everything your roofing project needs right here. Metrotile is also an authorised dealer of Velux window products, ensuring that you can source absolutely everything your roof requires directly from us!

We stock our profiles with a wide range of colours designed to suit most roofing projects, however we can supply Metrotile roofing in any colour you choose (subject to additional delivery time). If you wish to discuss this - or anything else about our products and services - you can contact us.
