Metrotile Qube Roofing System

Metrotile Qube offers Sleek, clean lines for a classic roof finish

In Stock profile

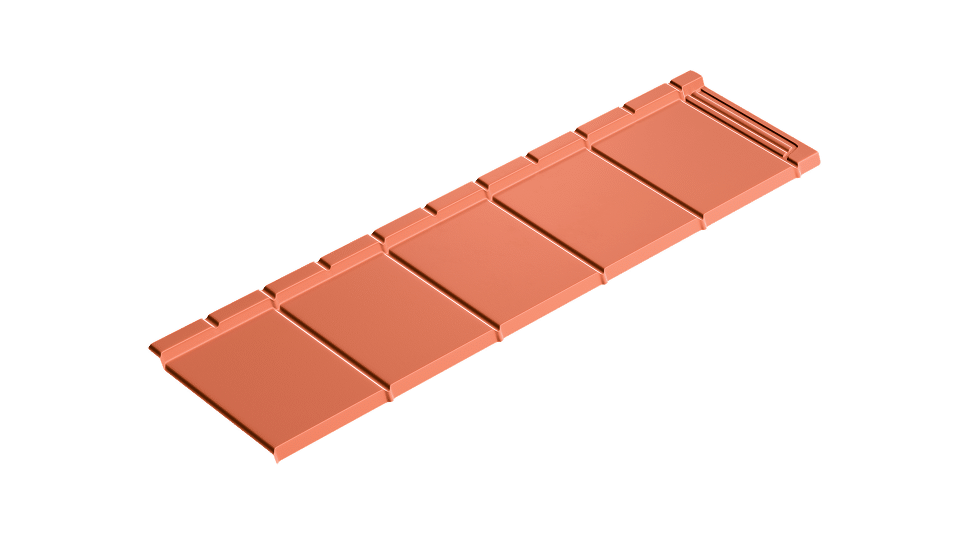

An exciting new addition to the Metrotile range, the Qube profile offers a sleek profile with clean lines, available in two distinct finishes; Smooth -a beautiful matt finish Stone Coated - a granulated coating available in 3 different colours

Metrotile Qube (formerly known as Metrotile Moderna) is a sleek and clean rectangular design offering simplicity & beauty. This distinctive, well-defined profile will add considerable character for the most contemporary of designs while offering security to your roof that ‘traditional’ materials simply can’t. Concerned about the sound generated by rainfall and other weather? Don’t be – the Qube roof tile has a special acoustic membrane attached to its rear side for sound attenuation. available in 3 stone granular stone coated colours, details on request.

Installable crossways or in a straight line, the Qube’s elegant lines offer a stunning finish to any pitched rooftop and is available in a selection of matt or stone coated finishes – please contact us for more information.

When enquiring about the Qube tile, please inform our sales team if it is the Smooth Qube or Stone Coated version you’re interested in so we can ensure you’re getting exactly what you’re after.

If you have any queries about this please don’t hesitate to get in touch.

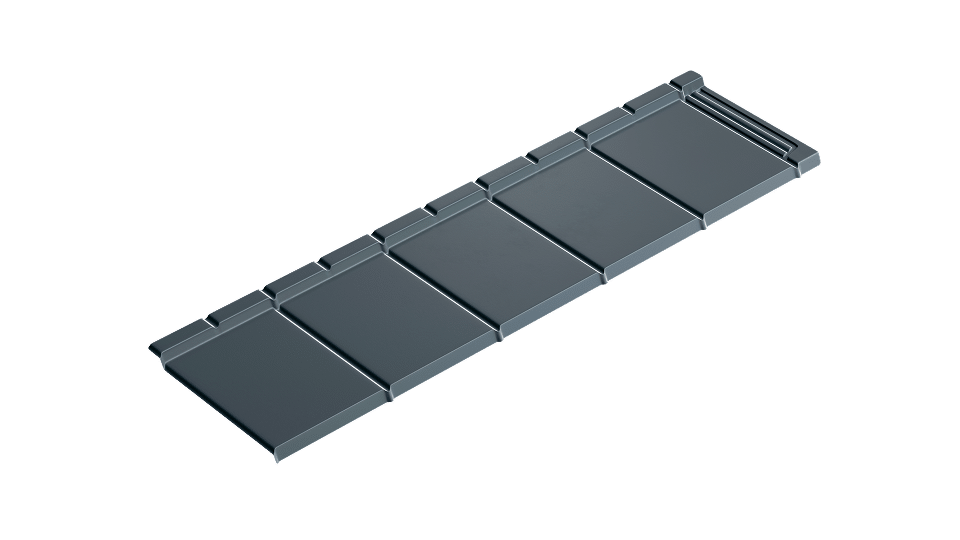

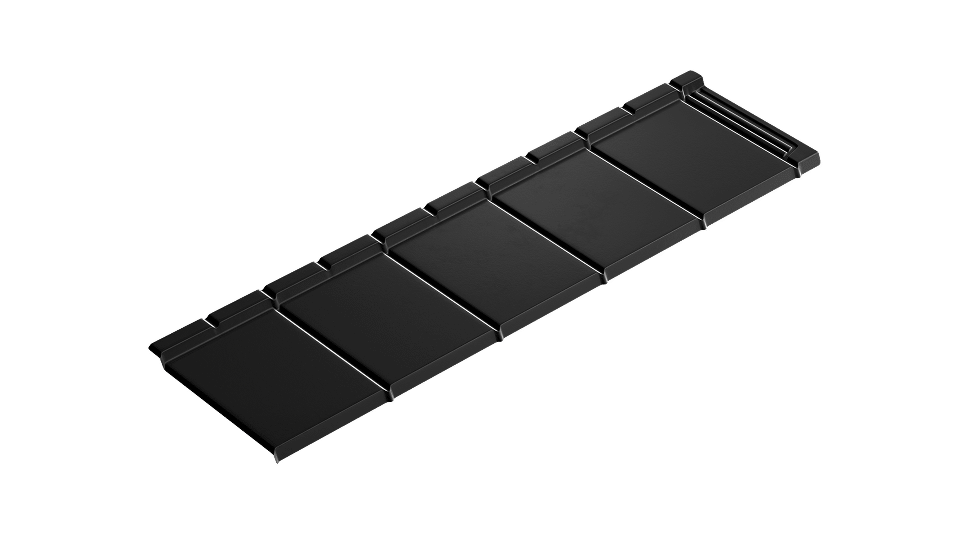

Metrotile Metrotile Qube Roofing System in Smooth Qube (Ebony)

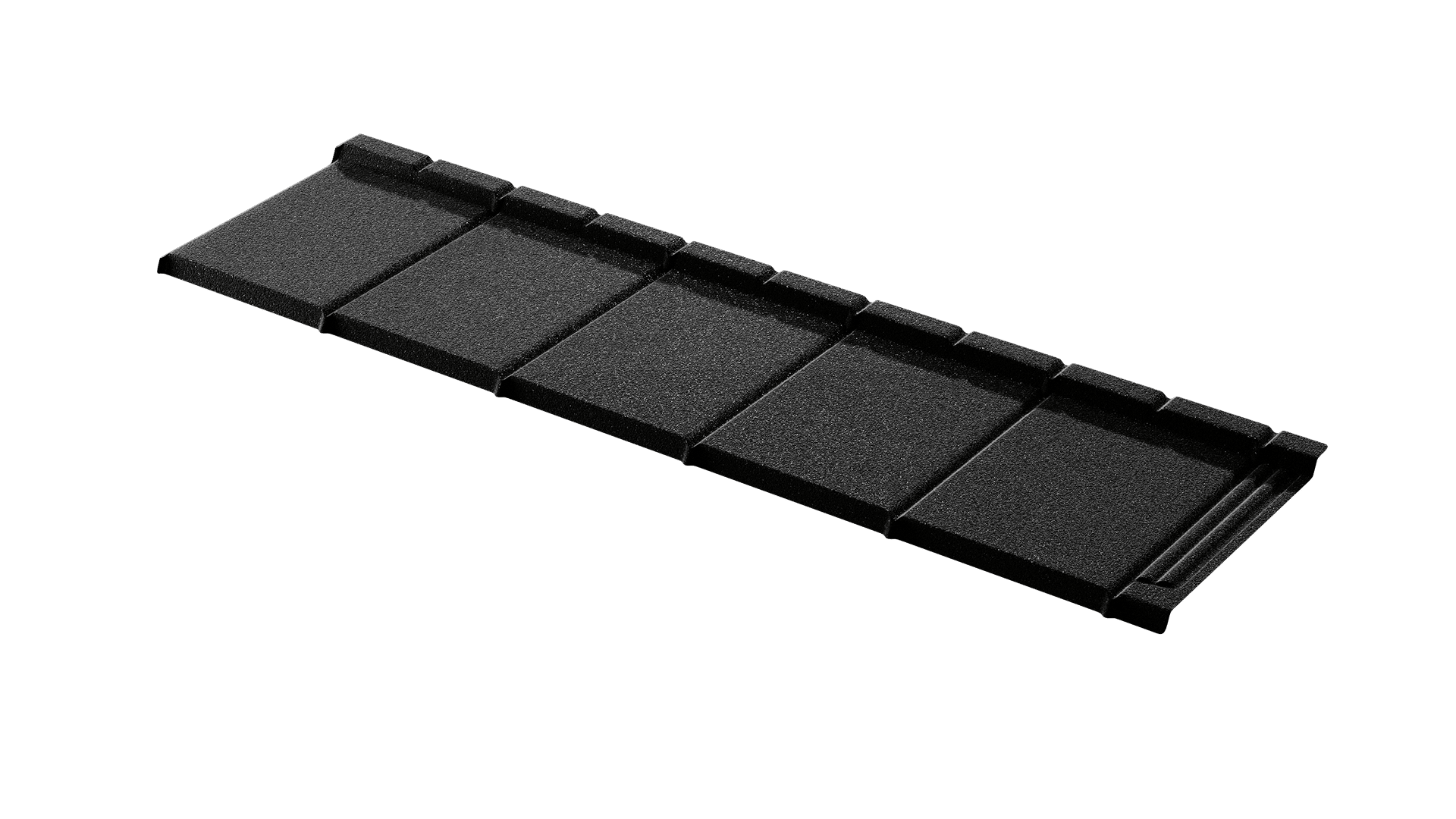

Metrotile Metrotile Qube Roofing System in Stone Coated Qube (Ebony)

Fixings & Battens

Tile Fixing: 50 x 2.5mm Coated Nail
Coated Nail: Hand nailing or power tool
FixingsPer Tile: 4
Battens Required: 5 linear metres per m2 (plus wastage)
Rafter Centres Batten Size
450mm 38mm x 50mm
600mm 38mm x 50mm
900mm 50mm x 50mm
1200mm 50mm x 50mm


Length: 1305 mm
Cover Length: 1260 mm
Cover Width: 320 mm
Tiles per M2: 2.47 m2
Minimum Pitch: 16°
Weight Per Tile: 2.10 kg


Knowledge Base

To watch our installation guides, and to read the full documentation for this product, please visit our Knowledge Base.

Case Study

Housing Association Flat Refurbishments, Peterborough

Housing Association Cross Keys Homes manage four blocks of flats between Grove Court and Tower Court in Peterborough. Sporting flat roofs since they were built in the late sixties, it became apparent that significant repairs were required when problems with the internal roof drainage system were causing water ingress and damp problems in the flats and maisonettes.

View case study
Local Authority Library Refurbishment Irby Metrotile Lightweight Roofing in Vixen Charcoal

Case Study

Irby Library

From its humble beginnings during the early fifties, the current Library at Irby, Wirral was built during the late 60’s at the site of a demolished farmhouse. Loved by the local community with an aesthetic that blends in with the idyllic village surrounding it, the Library, like any other building during its fourth decade, requires routine building maintenance. In the case of Irby Library, it was decided that the current roofing material had run its course and a flat to pitch conversion was required.

View case study
Metrotile Lightweight Roofing homes conservatory solid roof conversion Metrotile Lightweight Roofing Shingle Antique Red

Case Study

Home Conservatory

Mr and Mrs Palmer of Buckinghamshire had decided their large, twenty five year old conservatory was in need of a refresh. Sporting a traditional glass roof, the conservatory was a space utilised well during the summer, but not during the cooler winter months.

View case study

The Full Metrotile Range

Tile Profiles

From our highly durable lightweight steel roofing tile profiles to underlay, accessories and fixings, you’ll find everything your roofing project needs right here. Metrotile is also an authorised dealer of Velux window products, ensuring that you can source absolutely everything your roof requires directly from us!

We stock our profiles with a wide range of colours designed to suit most roofing projects, however we can supply Metrotile roofing in any colour you choose (subject to additional delivery time). If you wish to discuss this - or anything else about our products and services - you can contact us.
